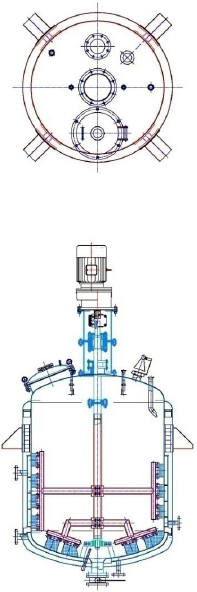

    SYMPHONY (Batch 농축기)

  •
  •
    •
    • B-03. 2nd. SYMPHONY Batch EVAPORATOR
    • 1) 형 식 : 수직 원통형 3중 탱크 (상,하부 경판형식)
    • 2) 용 량 : 2,500 LIT/HR
    • 3) 재 질 : STS304
    • 4) 표면처리
    • - 내 면 : #300 Buffing
    • - 외 면 : #220 Buffing
    • 5) 부 속 품
    • - 교반기 : AC220 / 380V x 60Hz x 7.5HP x 1/60 (EG3)
    • - IMPELLER : ANCHOR TYPE x 1-BLADE PADDLE TYPE
    • - END SHAFT : ROTATING PART - TEFLON HOUSING
    • - MANHOL (FLANGE TYPE)
    • - SIGHT GLASS
    • - LIGHT GLASS
    • - SHAFT VALVE
    • - AIR VENT (WITH VALVE)
    • - C.I.P SPRAY NOZZLE
    • - PRODUCT IN / OUTLET NOZZLE
    • - 온도계, 진공계
    • - T.I.C CONTROL PORT
    • - INSULATION & INSUALTION COVER
    • - STEAM IN / OUTLET NOZZLE
    • - BRACKET x 4EA
  •
