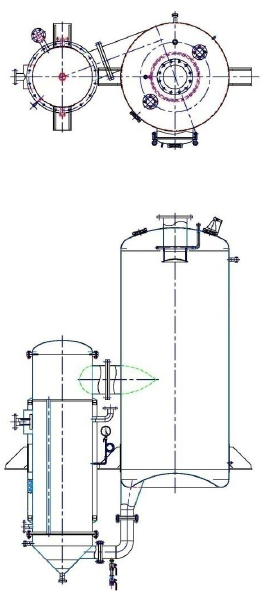

- B-02. 1st. N.C.E EVAPORATOR
- 1)Çü ½Ä : Natural Circulation Evaporator type
- (1 Stage type)
- 2) ¿ë ·® (Áõ¹ß·®) : 1,000kg/hr (¹°±âÁØ)
- 3) Àç Áú
- - Body & Top & Bottom : STS304
- - Tube : STS316
- 4) Body Top & Bottom Head
- - Top : 10% Dished Head
- - Bottom : 10% Dished Head
- 5) Ç¥¸éó¸®
- - ³» ¸é : #300 Buffing
- - ¿Ü ¸é : #220 Buffing
- 6) ºÎ ¼Ó ǰ
- - À¯·® ÄÜÆ®·Ñ System Àû¿ë (¼öµ¿)
- - Manhole
- - Sight & Light glass
- - Liquid in/outlet Nozzle
- - T.I.C Control (Steam)
- - ¾ÈÀüº¯ (Buy), (Steam¿ë)
- - Steam in/outlet Nozzle
- - C.I.P Nozzle
- - Sampling port (Double Valve)
- - Vapor outlet Nozzle(KS. 10K. SOFF)
- - Bracket : 4Set's
- 7) Cyclone Æ÷ÇÔ
-
